Edge URL redirect

This service speeds up navigation and relieves your origin servers by moving the URL redirection from the origin to an edge server closer to the end users

Overview

When a user enters a URL in their browser to access your website or application, the request first reaches the redirector located at the "edge" of the network—closest to the user—rather than directly reaching the origin server. This service speeds up end-user navigation and relieves your origin servers of non-essential tasks.

Use case:

Website growth and evolution: As your website's structure evolves over time, from blog to a more professional and complete website involving online sales for instance, the list of redirection rules can become extensive as the structure will completely change over time with pages moved to other addresses. It will make redirections increasingly difficult for the origin server to manage efficiently. Offloading redirection management to the edge helps alleviate this burden, enabling the origin server to focus on tasks that cannot be handled at the network edge, thereby improving overall performance.

Benefits

Enhanced Speed: Save the round trip between end-user and Origin Server allows faster and more efficient redirection.
Relieve Origin Server: Reduced origin server load frees up capacity for other performance-critical tasks that require additional resources.
SEO Performance Properly managed redirection is key for strong rankings and visibility on Search Engines.

Configurations

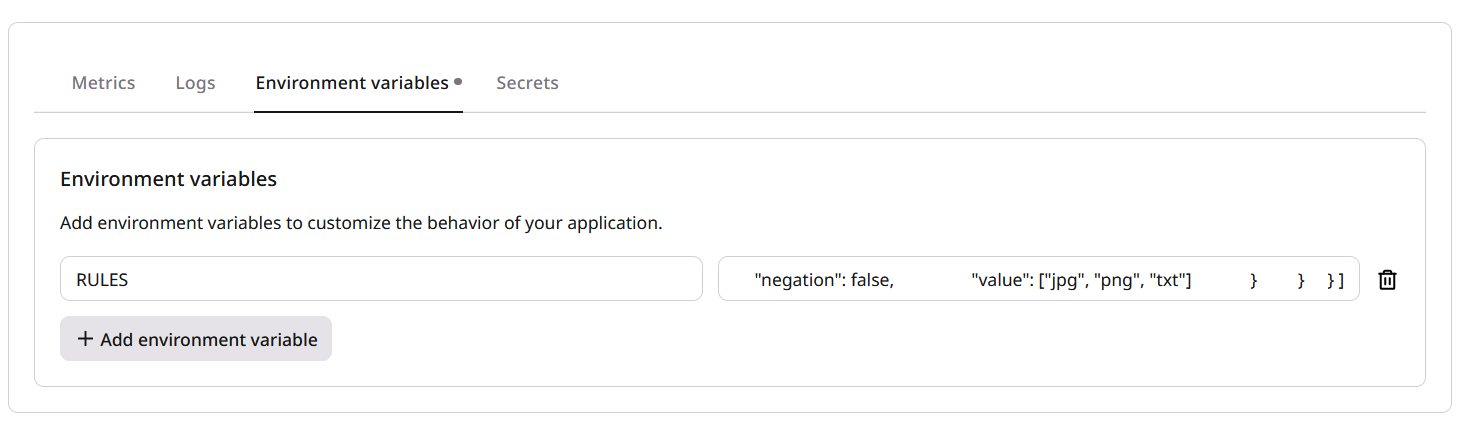

The internal/Client operation team member should configure one parameter named RULES into edge compute ihm

this variables should contains a list of rules into a JSON format. Each rule must have elements

Edge URL Redirect Custom Rule Configuration

This document describes the JSON configuration structure for a custom edge url redirect rule.

Overview

The configuration defines a redirect rule with specific conditions and actions that determine when and how requests should be redirected.

Configuration Properties Quick Reference

Category	Property	Type	Required	Description
Root	`name`	string	Yes	Human-readable name for the rule
Root	`order`	number	Yes	Execution priority (lower numbers execute first)
Root	`action`	object	Yes	Defines the redirect behavior and modifications
Root	`conditions`	object	No	Specifies when the rule should be applied
Action - Redirect	`redirect.status_code`	number	No	HTTP status code for the redirect (301, 302). Default 302
Action - Redirect	`redirect.redirect_url`	string	Yes	Target URL with optional placeholders like `{userId}`
Action - Redirect	`redirect.redirect_type`	string	Yes	Type of redirect: None/Inherit/Relative
Action - Query Strings	`query_strings`	array	No	Query parameter modifications (preserve_all, remove_all, remove, modify, add)
Conditions - Time	`datetime_start`	string	No	Rule activation start time (ISO Format: yyyy-MM-ddTHH:mm:ss)
Conditions - Time	`datetime_end`	string	No	Rule activation end time (ISO Format: yyyy-MM-ddTHH:mm:ss)
Conditions - IP	`ip.negation`	boolean	Yes*	Whether to negate the IP condition (*if ip used)
Conditions - IP	`ip.value`	array	Yes*	List of IP addresses/CIDR blocks (*if ip used)
Conditions - Countries	`countries.negation`	boolean	Yes*	Whether to negate the country condition (*if countries used)
Conditions - Countries	`countries.value`	array	Yes*	List of country codes (*if countries used)
Conditions - Hostname	`hostname`	string	No	Target hostname pattern (supports wildcards)
Conditions - URL	`url.negation`	boolean	Yes*	Whether to negate the URL condition (*if url used)
Conditions - URL	`url.value`	string	Yes*	URL pattern to match (*if url used)
Conditions - URL	`url.match_type`	string	Yes*	Matching method: regex/equals/contains (*if url used)
Conditions - User Agent	`user_agent.negation`	boolean	Yes*	Whether to negate the user agent condition (*if user_agent used)
Conditions - User Agent	`user_agent.value`	array	Yes*	List of user agent patterns (*if user_agent used)
Conditions - User Agent	`user_agent.match_type`	string	Yes*	Matching method (*if user_agent used)
Conditions - File Ext	`file_extensions.negation`	boolean	Yes*	Whether to negate the file extension condition (*if file_extensions used)
Conditions - File Ext	`file_extensions.value`	array	Yes*	List of file extensions to match (*if file_extensions used)
Conditions - Headers	`headers[].header_name`	string	Yes*	Name of the header to check (*if headers used)
Conditions - Headers	`headers[].negation`	boolean	Yes*	Whether to negate the condition (*if headers used)
Conditions - Headers	`headers[].match_type`	string	Yes*	Matching method: equals/contains/regex (*if headers used)
Conditions - Headers	`headers[].value`	string	Yes*	Value to match against (*if headers used)
Conditions - Headers Exist	`headers_exist[].negation`	boolean	Yes*	Whether to negate the condition (*if headers_exist used)
Conditions - Headers Exist	`headers_exist[].header_name`	string	Yes*	Request header name (*if headers_exist used)
Conditions - Query Strings	`query_strings[].negation`	boolean	Yes*	Whether to negate the condition (*if query_strings used)
Conditions - Query Strings	`query_strings[].key`	string	Yes*	Query string key name (*if query_strings used)
Conditions - Query Strings	`query_strings[].value`	string	Yes*	Value to match (*if query_strings used)
Conditions - Query Strings	`query_strings[].match_type`	string	Yes*	Matching method: equals/contains (*if query_strings used)
Conditions - Query Strings Exist	`query_strings_exist[].negation`	boolean	Yes*	Whether to negate the condition (*if query_strings_exist used)
Conditions - Query Strings Exist	`query_strings_exist[].key`	string	Yes*	Query string key name (*if query_strings_exist used)

Root Properties

Property	Type	Required	Description
`name`	string	Yes	Human-readable name for the rule
`order`	number	Yes	Execution priority (lower numbers execute first)
`action`	object	Yes	Defines the redirect behavior and modifications
`conditions`	object	No	Specifies when the rule should be applied

Action Configuration

Redirect Settings

Property	Type	Required	Description
`redirect.status_code`	number	No	HTTP status code for the redirect (301, 302). default 302
`redirect.redirect_url`	string	Yes	Target URL with optional placeholders like `{userId}`
`redirect.redirect_type`	string	Yes	Type of redirect must be : None: Requires a fully-qualified URL, with protocol, in the Redirect Path field. Inherit: Creates an absolute path using the request's protocol and hostname and the path in the Redirect URL field. The response includes this absolute path in its Location header. Relative:Takes the path entered in the Redirect URL field and sets it in the response’s Location header. The client or browser receiving the request decides which protocol and hostname to use.

Query String Modifications

The query_strings array defines how to modify URL parameters:

Rule Type	Description	Example
`preserve_all`	Preserve all query parameters	`rule_changes: "preserve_all"`
`remove_all`	Removes all query parameters	`rule_changes: "remove_all"`
`remove`	Removes a specific parameter	`key: "token", rule_changes: "remove"`
`modify`	Changes the value of an existing parameter	`key: "lang", value: "fr", rule_changes: "modify"`
`add`	Adds a new parameter	`key: "key3", value: "value3", rule_changes: "add"`

Conditions Configuration

Time-based Conditions

Property	Type	Required	Description
`datetime_start`	string	No	Rule activation start time (ISO Format Date Time yyyy-MM-ddTHH:mm:ss)
`datetime_end`	string	No	Rule activation end time (ISO Format Date Time yyyy-MM-ddTHH:mm:ss)

IP Network Conditions

IP network conditions is an optional condition but when set the following elements must be provided

Property	Type	Required	Description
`ip.negation`	boolean	Yes	Whether to negate the IP condition
`ip.value`	array	Yes*	List of IP addresses/CIDR blocks (*required if ip condition is used)

Countries Conditions

Countries conditions is an optional condition but when set the following elements must be provided

Property	Type	Required	Description
`countries.negation`	boolean	Yes	Whether to negate the country condition
`countries.value`	array	Yes*	List of country codes (*required if countries condition is used)

Hostname Condition

Property	Type	Required	Description
`hostname`	string	No	Target hostname pattern (supports wildcards)

Request URL Conditions

Request url conditions is an optional condition but when set the following elements must be provided

Property	Type	Required	Description
`url.negation`	boolean	Yes	Whether to negate the URL condition
`url.value`	string	Yes*	URL pattern to match (*required if url condition is used)
`url.match_type`	string	Yes	Matching method (`regex`, `equals`, `contains`). Support wildcard with regex match_type

User Agent Conditions

User Agent conditions is an optional condition but when set the following elements must be provided

Property	Type	Required	Description
`user_agent.negation`	boolean	Yes	Whether to negate the user agent condition
`user_agent.value`	array	Yes	List of user agent patterns (*required if user_agent condition is used)
`user_agent.match_type`	string	Yes	Matching method

File extension Conditions

File extensions conditions is an optional condition but when set the following elements must be provided

Property	Type	Required	Description
`file_extensions.negation`	boolean	Yes	Whether to negate the file extension condition
`file_extensions.value`	array	Yes*	List of file extensions to match (*required if file_extensions condition is used)

Header Conditions

Headers conditions is an optional array conditions but when setted a json should be provided with these elements

Header Value Matching

Property	Type	Required	Description
`header_name`	string	Yes	Name of the header to check
`negation`	boolean	Yes	Whether to negate the condition
`match_type`	string	Yes	Matching method (`equals`, `contains`, `regex`)
`value`	string	Yes	Value to match against

Header exist Conditions

Headers exist conditions is an optional array conditions. This conditions check the existance of an request headers. When setted each element should be a json with these elements

Property	Type	Required	Description
`negation`	boolean	Yes	Whether to negate the file extension condition
`header_name`	string	Yes*	request header name

Query string exist Conditions

Query String exist conditions is an optional array conditions. This conditions check the existance of an query string from request url. When setted each element should be a json with these elements

Property	Type	Required	Description
`negation`	boolean	Yes	Whether to negate the file extension condition
`key`	string	Yes	query string's key name

Example:

[{
    "name" : "Custom Rule for edge url redirect",
    "order": 1,
    "action": {
        "redirect": {
            "status_code" : 301,
            "redirect_url" : "/page/{userId}/",
            "redirect_type": ""
        },
        "query_strings":[
            {
                "rule_changes": "remove_all"
            },
            {
                "key": "token",
                "rule_changes": "remove"
            },
            {
                "key": "lang",
                "value": "fr",
                "rule_changes": "modify"
            },
            {
                "key": "key3",
                "value": "value3",
                "rule_changes": "add"
            }
        ]
    },
    "conditions": {
         "datetime_start": "",
         "datetime_end": "",
         "hostname": "abdoultest1.cdb-staging.*.orange.com",
         "ip_address":{
            "negation": true,
            "value": ["192.168.1.1/32", "192.168.2.0/24"]
         },
         "countries":{
            "negation": true,
            "value": ["ma", "fr", "en"]
         },
        "url": {
            "negation": true,
            "value": "/page/*/{userId}/home",
            "match_type": "regex"
        },
        "user_agent": {
            "negation": false,
            "value": ["mobile", "mozilla"],
            "match_type": "contains"
        },
        "file_extensions": {
            "negation": false,
            "value": ["jpg", "png", "txt"]
        },
        "headers":[
            {
                "header_name": "Authorization",
                "negation": false,
                "match_type": "contains",
                "value": "Bearer "
            },
            {
                "header_name": "Content-type",
                "negation": false,
                "match_type": "equals",
                "value": "application/json"
            }
        ],
        "headers_exist":[
            {
                "header_name": "Authorization",
                "negation": false
            },
            {
                "header_name": "Content-type",
                "negation": false
            }
        ],
        "query_strings":[
            {
                "negation": false,
                "key": "token",
                "value": "XXXXXXX",
                "match_type": "equals"
            },
            {
                "negation": true,
                "key": "version",
                "value": "XXXXXXX",
                "match_type": "contains"
            }
        ],
        "query_strings_exist":[
            {
                "negation": false,
                "key": "token"
            },
            {
                "negation": true,
                "key": "version"
            }
        ]
    }
}]

Steps to implement Edge URL Redirect with CDB Edge Compute

Prerequisite CDB Edge Compute must be activated for your customer.

Click on the FastEdge icon on the left to switch to FastEdge management.
Select CDN Applications then Applications
Click Create new application visible on top right
Select Edge URL redirect
Enter your settings
Click Save and deploy visible on top right At that point, your edge url redirect application is deployed on FastEdge, now it needs to be called by CDN, additional below steps are then necessary.
Select CDN on left pane
Select the CDN resource you want to associate with the Stickness function
In the CDN resource configuration (OPTIONS) select FastEdge apps
Switch the Enable On request headers
Select your edge Url redirect application from then drop down list displayed by clicking Fastedge application If the Orgin Shielding on your CDN Resource uncheck the Option 'Invoke FastEdge app on shield'.
If you want to see fastedge log error in case of processing error uncheck the option Interrupt request processing in case of error
